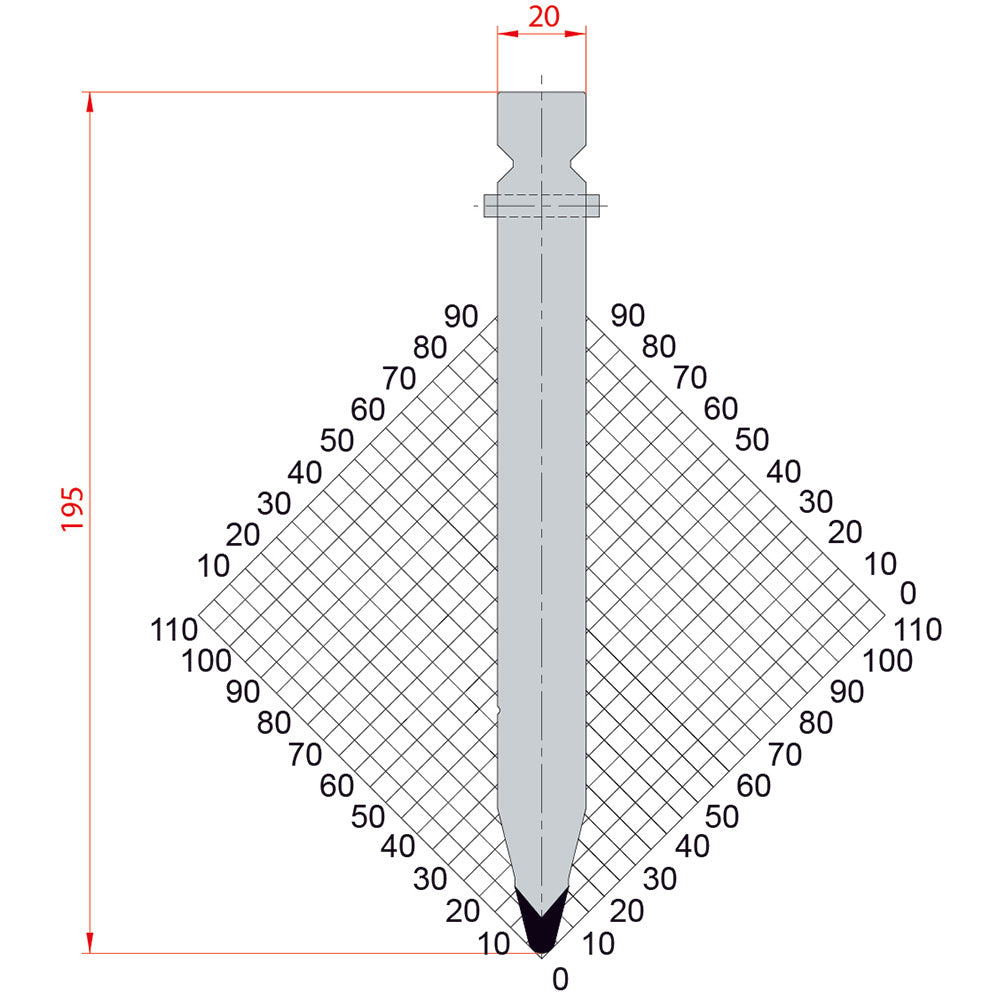

Wila - Trumpf style 28°/R3/H195 - 1237 Straight punch

Specifications:

Angle: 28°
Radius: 3mm
Height: 195mm
Capacity T/m: 100
Material: 42CrMo
Hardness: 55-60 HRC

Compatible with WILA - TRUMPF Press brake
Manufacturer: Eurostamp Made in Italy

Customization of this tool is possible.

Normal delivery 4 weeks + shipping

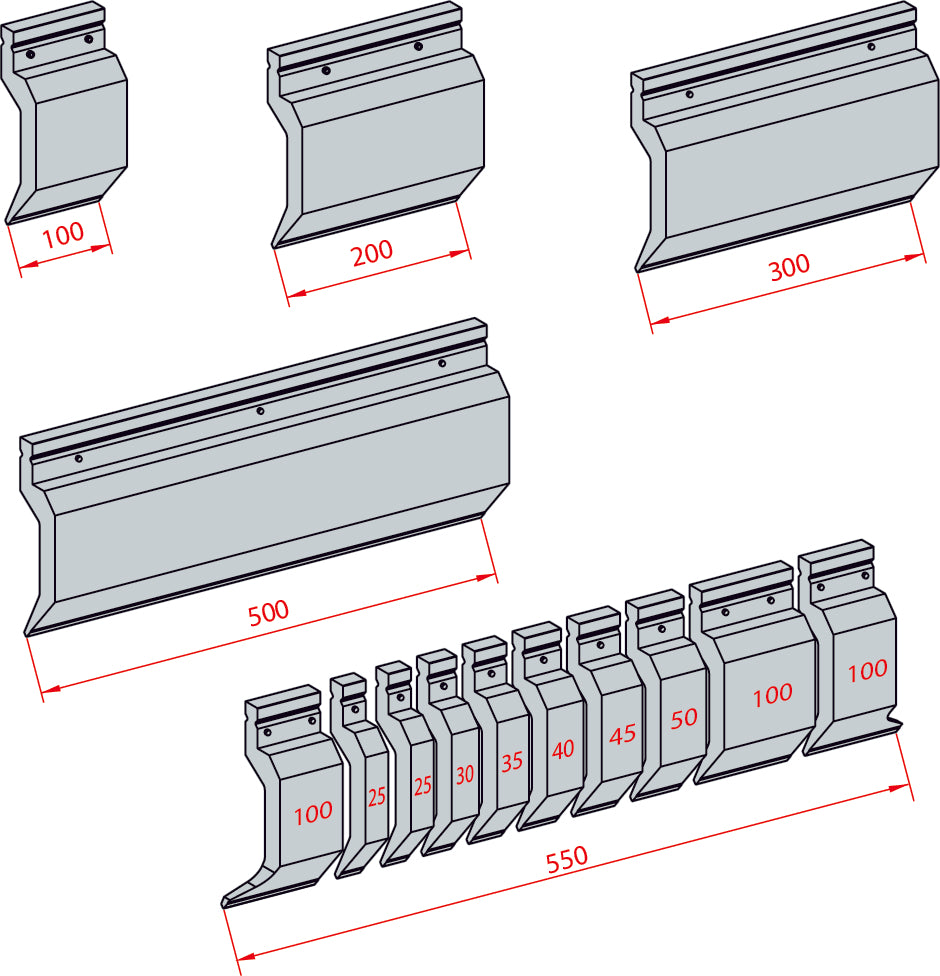

*Safety Quick Release Button included when the weight of the punch is less than 12,5kg (550mm Sectionned)

**Exact matching to original Wila-Trumpf is not guaranteed. But same FabTooling tool numbers will match over time if not worn.
