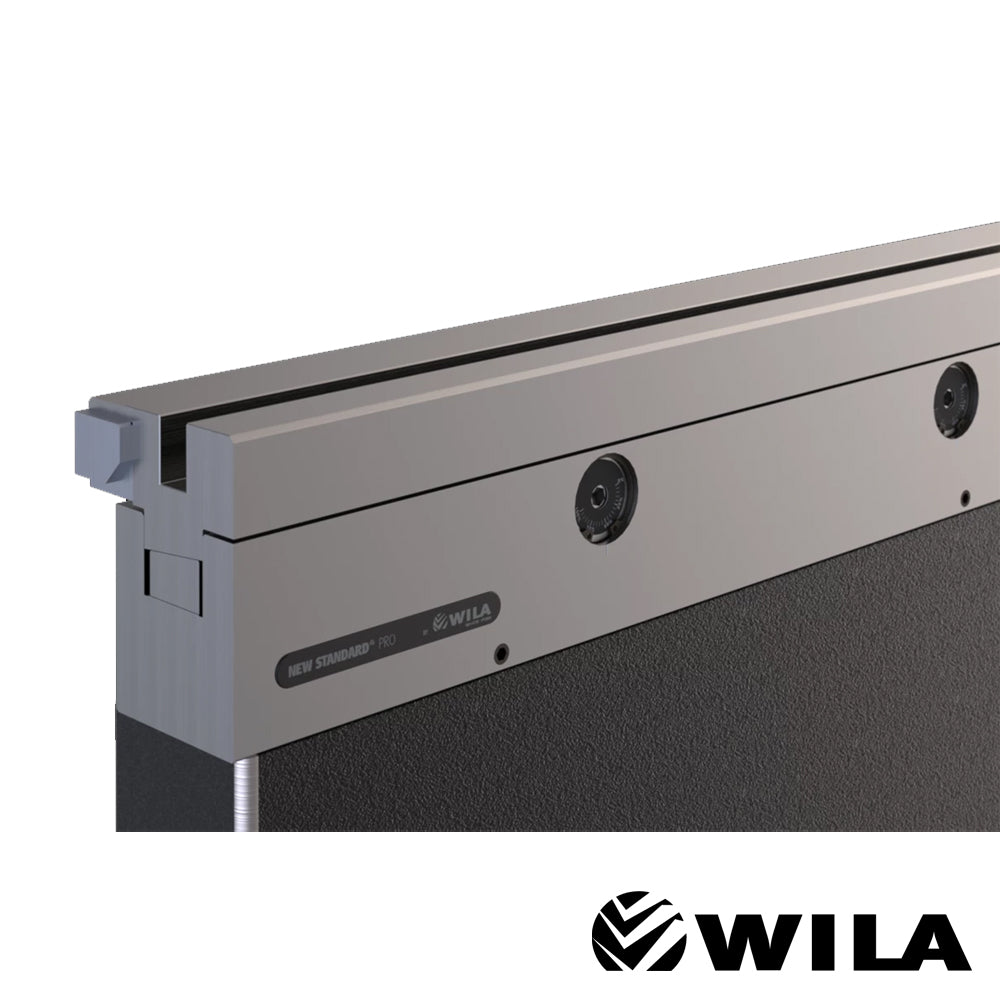

OB-I-HC-TY/UPB Wila New Standard Pro Bottom Tool Holder

$0.00
SKU: OB-I-HC-TY/UPB-1190
By Fabtooling

  • Clamping Type = Hydraulic
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)

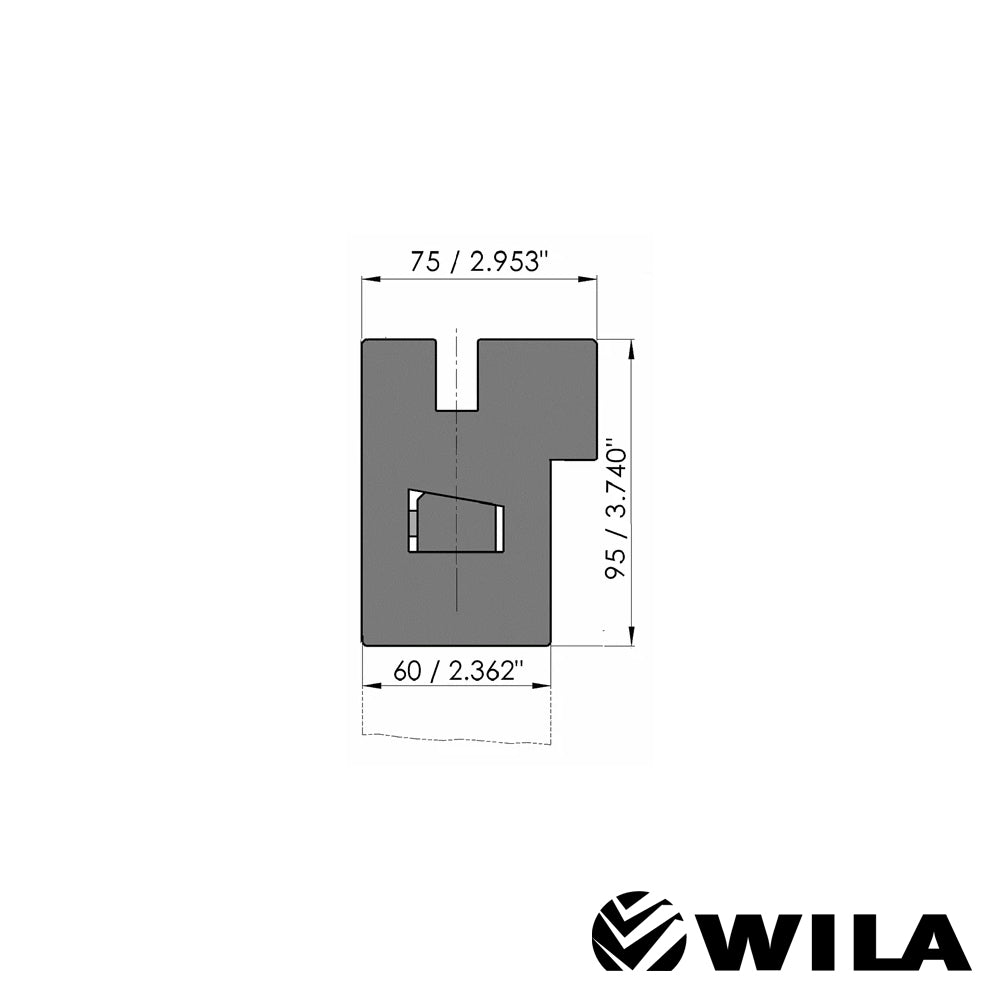

  • Working height H = 95mm
  • Width W = 75mm

Working height=95mm, Width=75mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened.
Delivery without hydraulic power pack.
