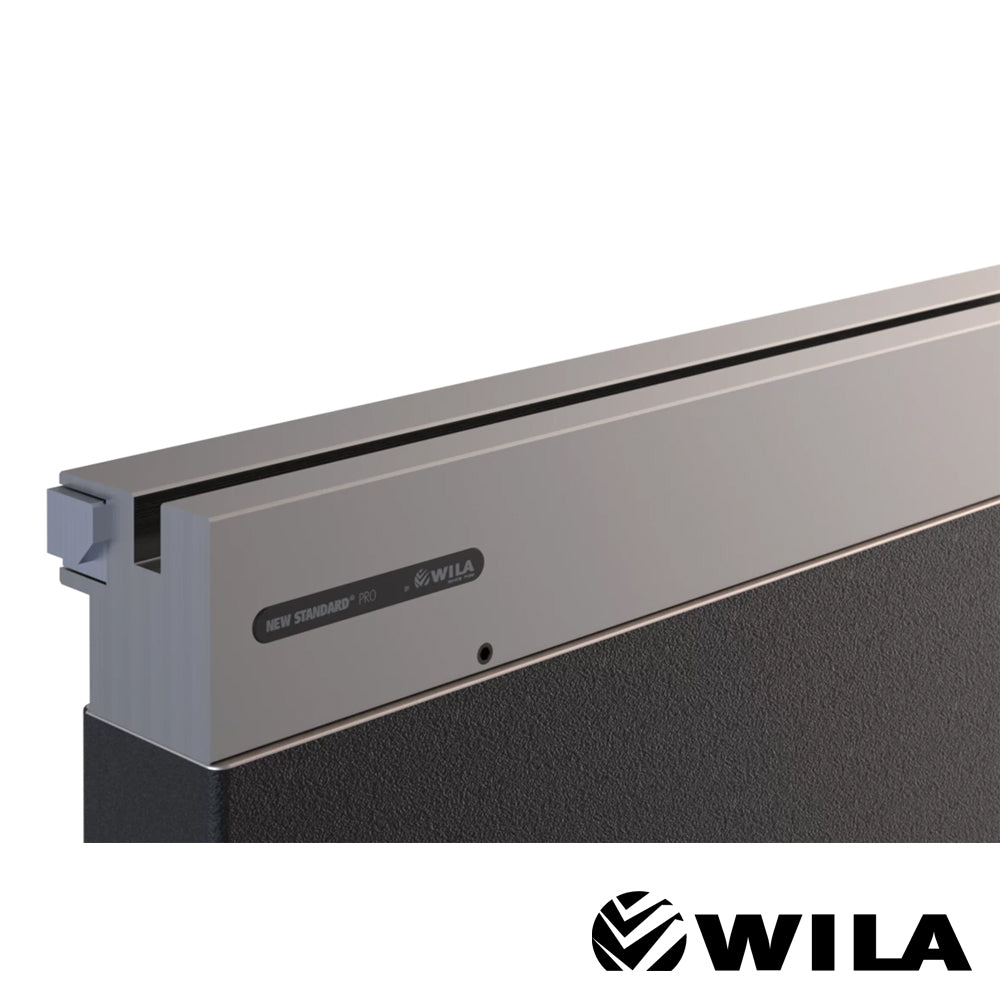

OB-I-HC/UPB Wila New Standard Pro Bottom Tool Holder

$0.00
SKU: OB-I-HC/UPB-1190
By Fabtooling CANADA

  • Clamping Type = Hydraulic
  • Adaption = UPB hole pattern
  • Horizontal Alignment (Tx)

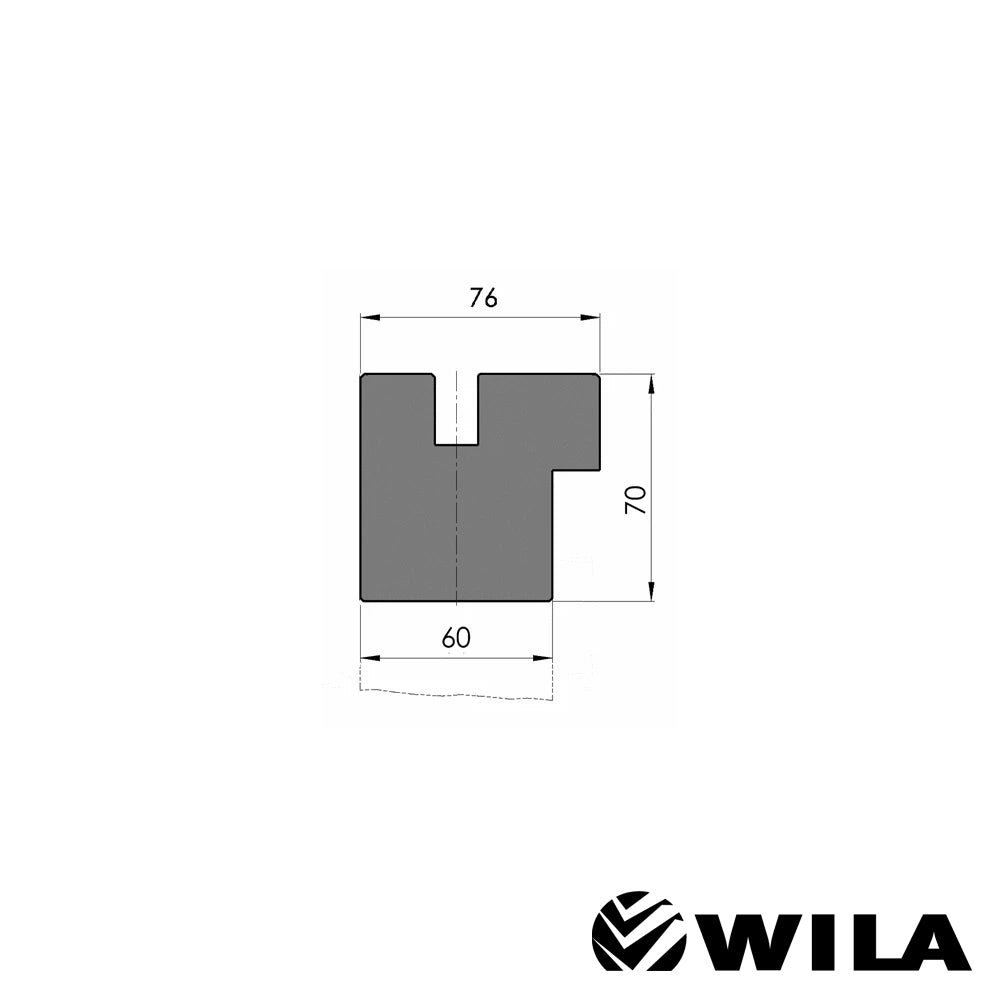

  • Working height H = 70mm
  • Width W = 76mm
  • Max. load = 200ton/m

Custom Style New Standard Pro bottom tool holder,
Working height=70mm, Width=76mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Tx-alignment, Material=C45 not hardened, weight: 32.1kg/m, max.load: 200ton/m.
Delivery without hydraulic power pack.

View details
