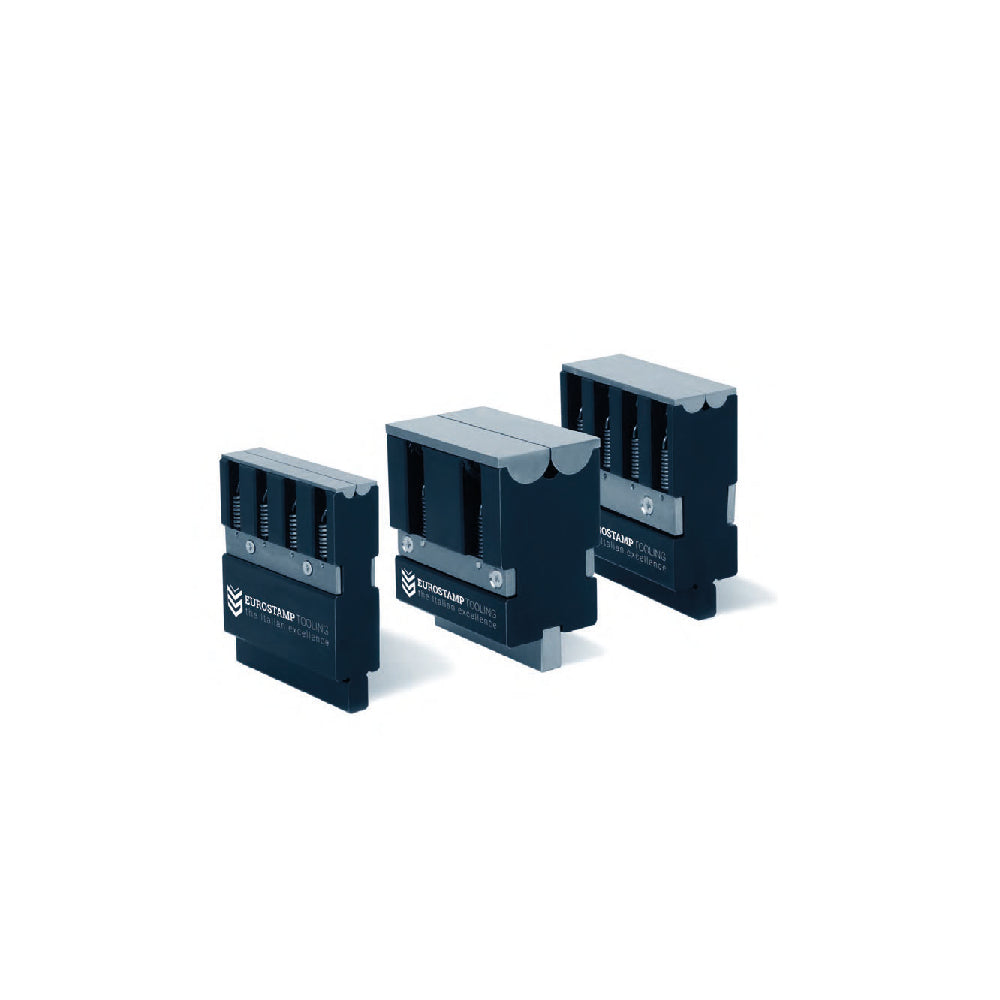

Amada style V7,2/H100 - W3334 Active bend Evo die
$0.00
SKU: W3334-500
Distributeur Fabtooling
Active bend EVO avoids some of the most common issues experienced
when using conventional dies; as it:
LESS WEARING
- Reduces marks caused by die shoulders.
- Reduces damages to protected and/or painted sheets.
- Reduces marks on tread/checker plates.
- Reduces distortion of holes near bending line.
HIGHER FLEXIBILITY
- It makes it easier and more accurate the fabrication of sheets with
diagonal sides. - It makes it possible to bend sheets with smaller flanges.
- It makes it possible to bend a wider range of sheet thicknesses that
would require more than one standard die.

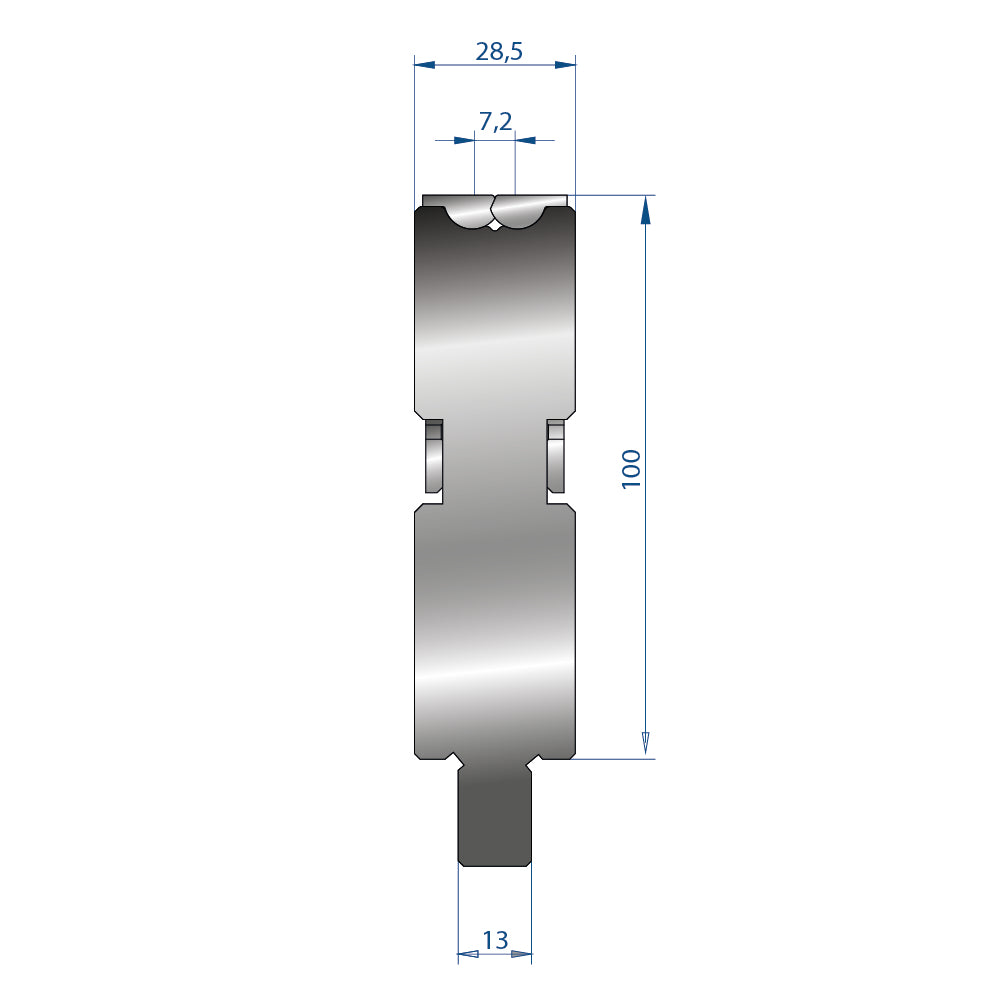

Specifications:
| Thickness | 0,7mm | 1mm | 1,5mm |
| MIN outside flange lenght | 4,2mm | 4,2mm | 4,2mm |
| Min bend angle | 40° | 35° | 35° |
| MAX outside radius | 3mm | 2,6mm | 2,2mm |
Body Material: CrMo hardened on its surface up to 55 HRC
Inserts Material: Special steel through hardened up to 60 HRC
Compatible with AMADA - PROMECAM Press brake
Manufacturer: Eurostamp Made in Italy
Customization of this tool is possible.
Normal delivery 4 weeks + shipping
