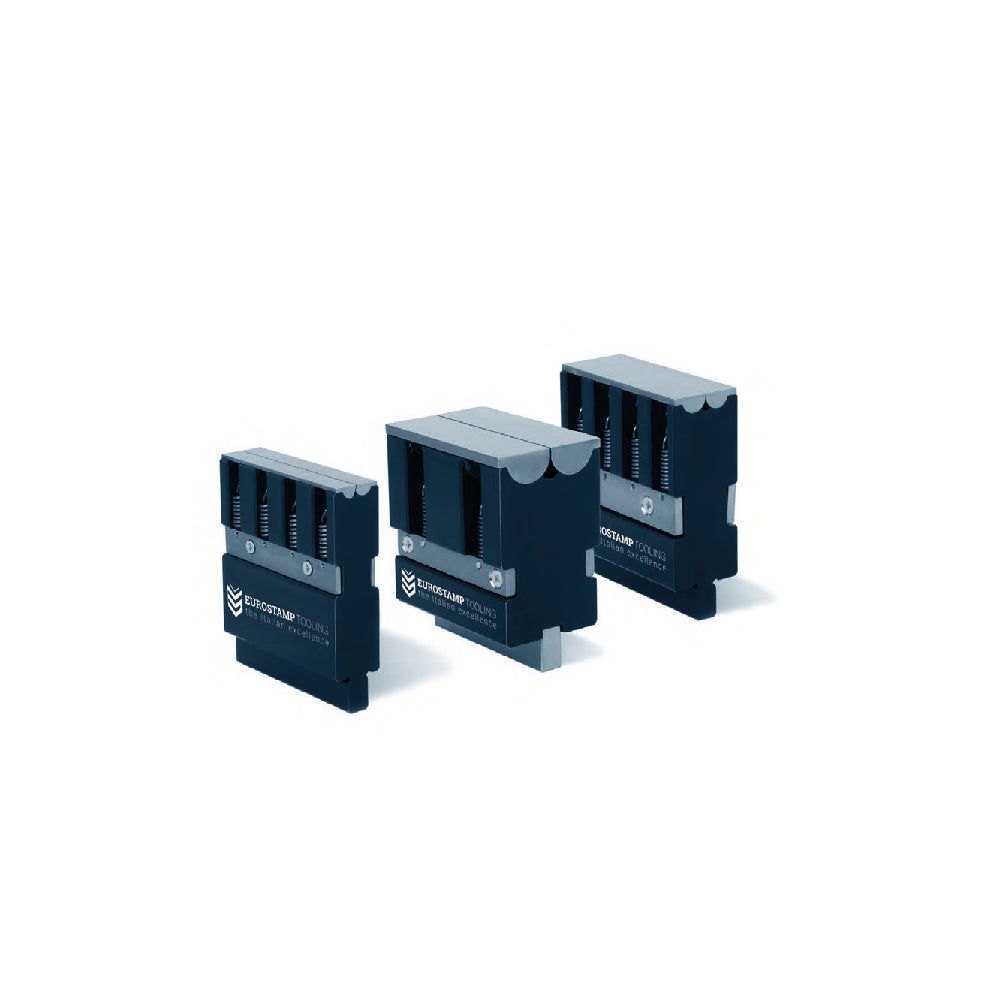

Amada style V26,4/H100 - W3336 Active bend Evo die

$0.00
SKU: W3336-500
By Fabtooling

Active bend EVO avoids some of the most common issues experienced
when using conventional dies; as it:

LESS WEARING

  • Reduces marks caused by die shoulders.
  • Reduces damages to protected and/or painted sheets.
  • Reduces marks on tread/checker plates.
  • Reduces distortion of holes near bending line.

HIGHER FLEXIBILITY

  • It makes it easier and more accurate the fabrication of sheets with
    diagonal sides.
  • It makes it possible to bend sheets with smaller flanges.
  • It makes it possible to bend a wider range of sheet thicknesses that
    would require more than one standard die.

Specifications:

Thickness 2mm
 4mm
 6mm
MIN outside flange lenght 18,6mm
 18,6mm
 18,6mm
Min bend angle 50° 50° 55°
MAX outside radius 13,2mm
 12mm
 9,8mm

Body Material: CrMo hardened on its surface up to 55 HRC

Inserts Material: Special steel through hardened up to 60 HRC

Compatible with AMADA - PROMECAM Press brake
Manufacturer: Eurostamp Made in Italy

Customization of this tool is possible.

Normal delivery 4 weeks + shipping
