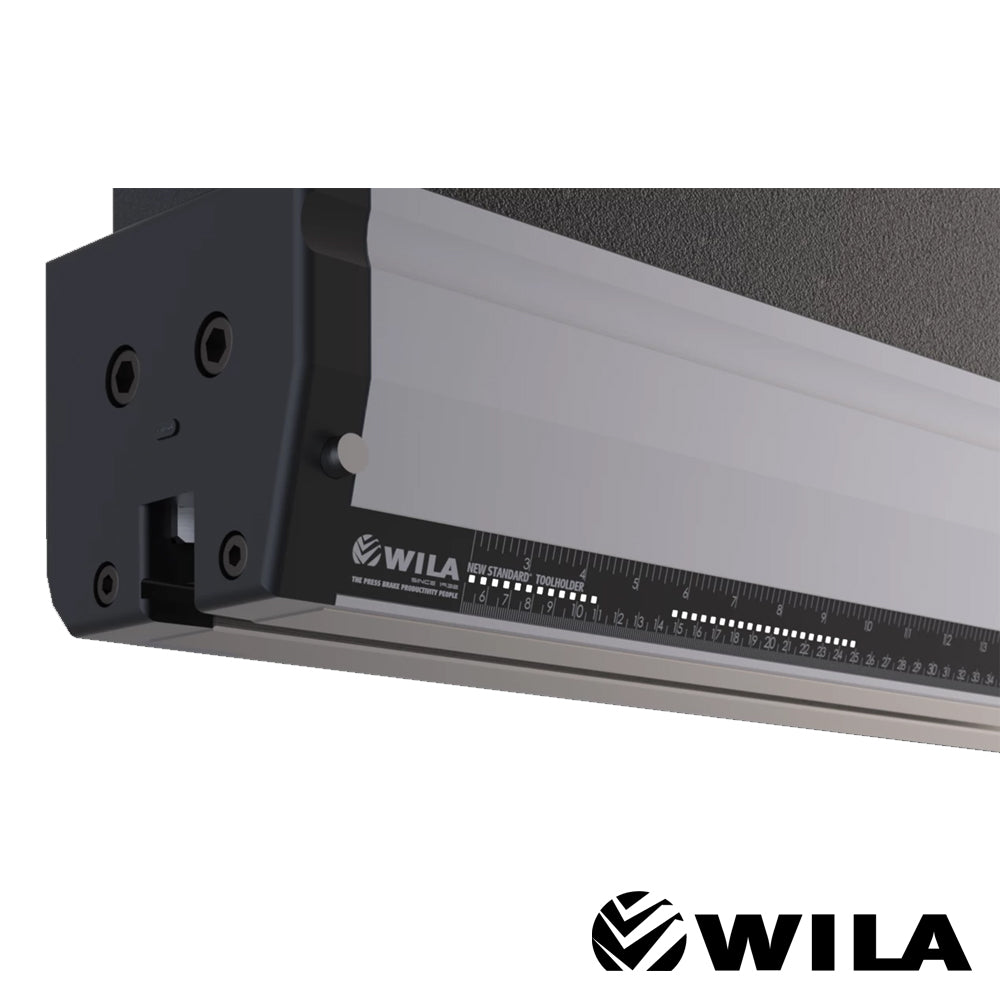

NSCL-HD-II-HC/UPB Wila New Standard Premium Clamping

$0.00
SKU: NSCL-HD-II-HC/UPB
By Fabtooling

  • Clamping Type = Hydraulic
  • Adaption = UPB-IV

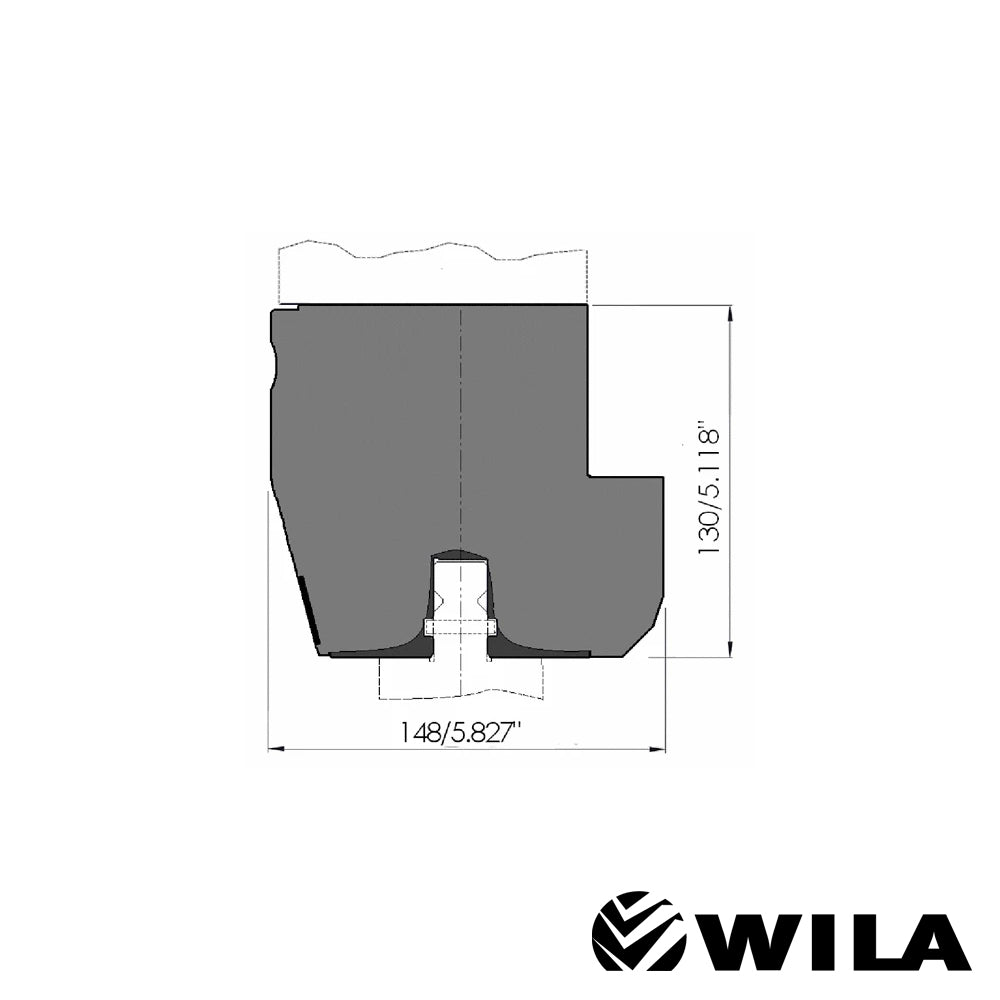

  • Working height H = 130mm
  • Width W = 148mm
  • Max. load = 800ton/m

Working height=130mm, Width=148mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0206292 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left top, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Max. load=800ton/m.
Delivery with coverstrip, guards and scale ("0" at the left).Delivery without hydraulic power pack.
