NSCL-II-HC/UPB Wila New Standard Premium Clamping

$0.00
SKU: NSCL-II-HC/UPB-1190
By Fabtooling

  • Clamping Type = Hydraulic
  • Adaption = UPB hole pattern
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

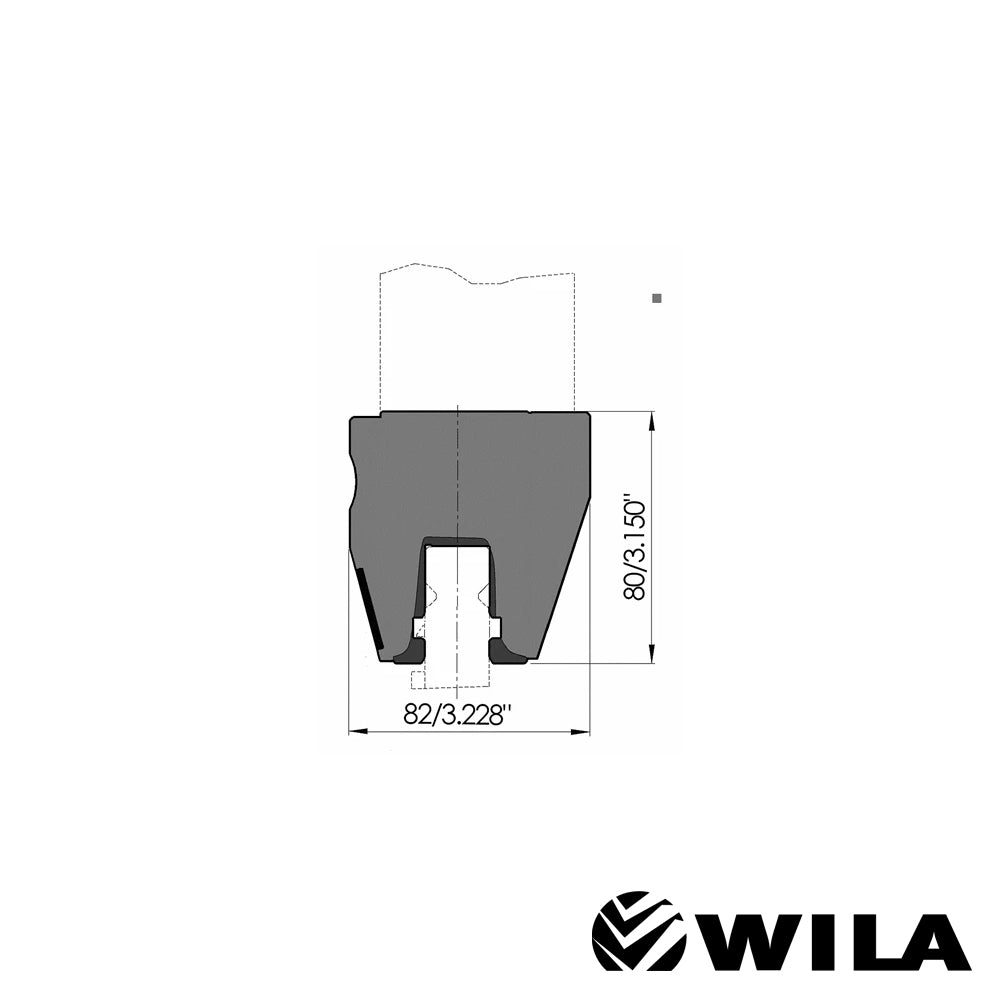

  • Working height H = 80mm
  • Width W = 82mm

Working height=80mm, Width=82mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left top, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).

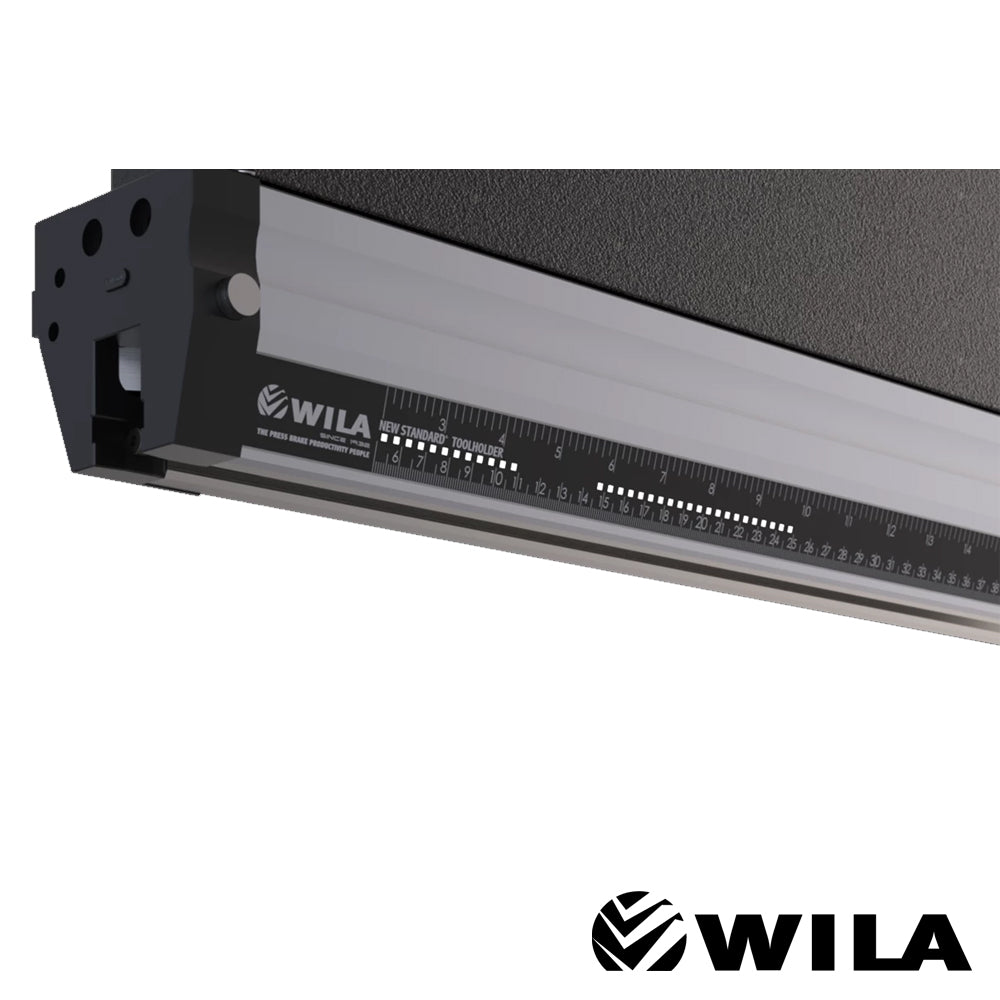

Delivery with coverstrip, guards and scale ("0" at the left).Delivery without hydraulic power pack.
