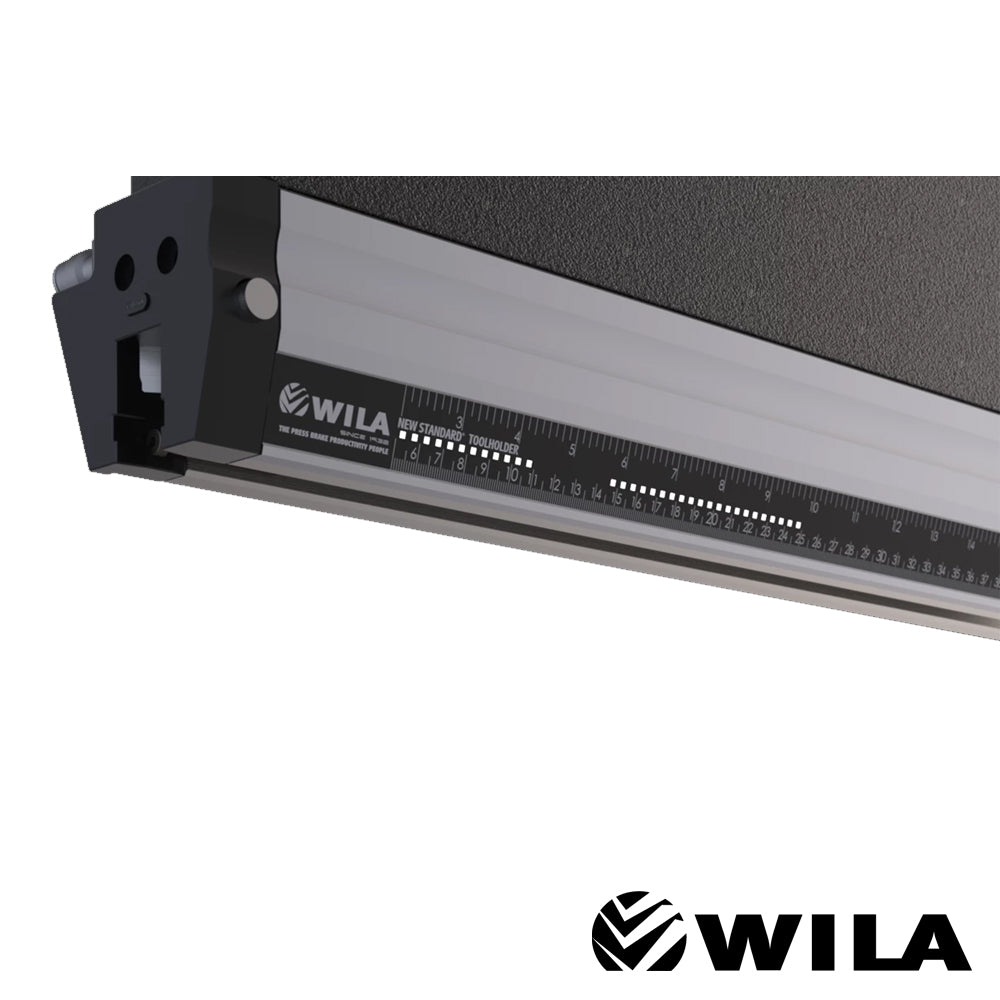

NSCL-II-SL/UPB Wila New Standard Premium Clamping

• Clamping Type = Pneumatic
• Adaption = UPB hole pattern
• Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

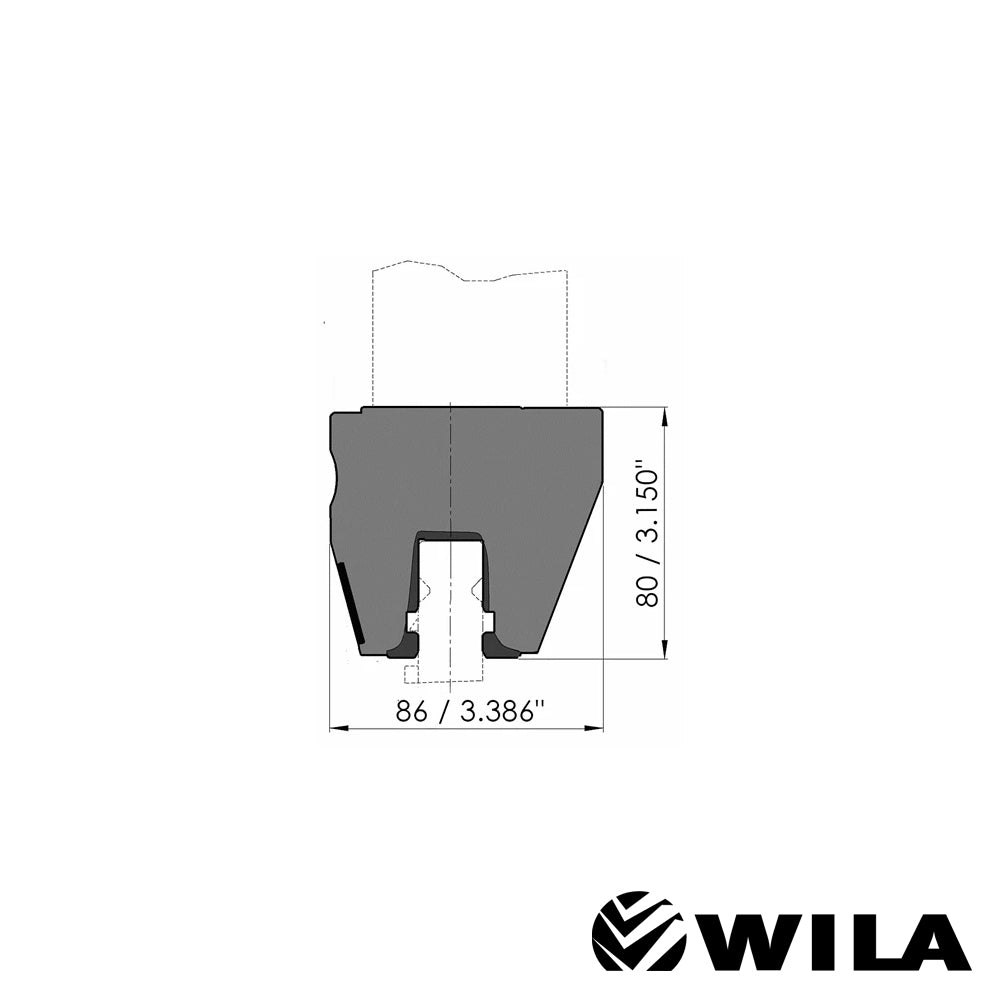

• Working height H = 80mm
• Width W = 86mm
• Max. load = 200ton/m

Working height=80mm, Width=86mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, pneumatic clamping, left and right rear, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=25kg/m, Max. load=200ton/m.
Delivery with coverstrip, hardened guards and scale ("0" at the left).
