Wila - Trumpf style 30°/V20/H55 - 3265 Single V die

Name: Wila - Trumpf style 30°/V20/H55 - 3265 Single V die
Brand: Fabtooling
SKU: 3265-515
Availability: InStock

$0.00

SKU: 3265-515

Distributeur Fabtooling

Taille

515mm 200mm 100mm 550mm (segmented)

Quantité

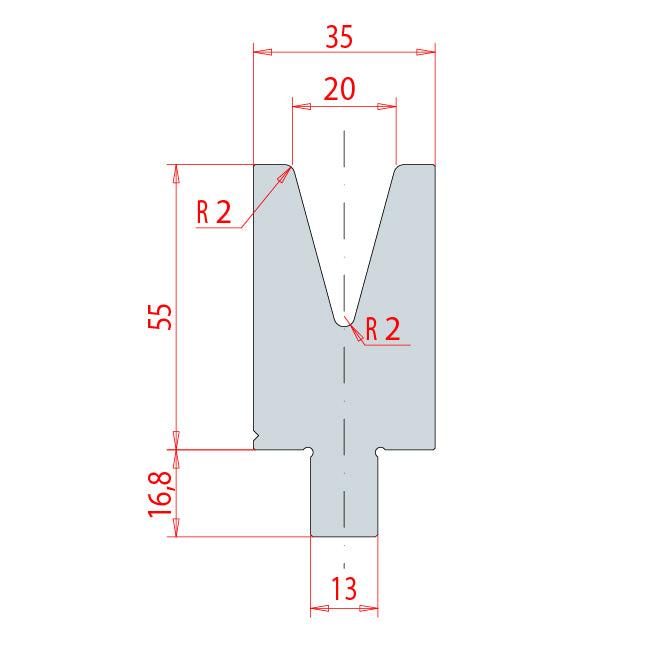

Specifications:

Angle: 30°
Opening: 20mm
Radius: 2mm
Height: 55mm
CapacityT/m: 30
Material: 42CrMo
Hardness: 58-60 HRC

Compatible with WILA - TRUMPF Press brake
Manufacturer: Eurostamp Made in Italy

Customization of this tool is possible.

Normal delivery 4 weeks + shipping

**Exact matching to original Wila-Trumpf is not guaranteed. But same FabTooling tool numbers will match over time if not worn.
